| Nr modelu: | TX-AP204 | Kierunkowość: | antena dookólna |
|---|---|---|---|
| VSWR: | 2 | Antena bazowa: | antena o dużym zysku |
| Charakter operacji: | Antena nadawcza | Forma Struktury: | Antena powierzchniowa |
| Wymiarowość: | Antena dwuwymiarowa | Tworzywo: | Abs |
| Częstotliwość: | 450-470MHz | Wzmocnienie anteny: | 2 dBi |
| Polaryzacja: | Liniowy | Impedancja: | 50 omów |
| Materiał grzejnika: | PCB+sprężyna | Temperatura pracy: | -20 ˚C ~ +60 ° C |
| Temperatura przechowywania: | -40 ˚C ~ +80 ° C | ||

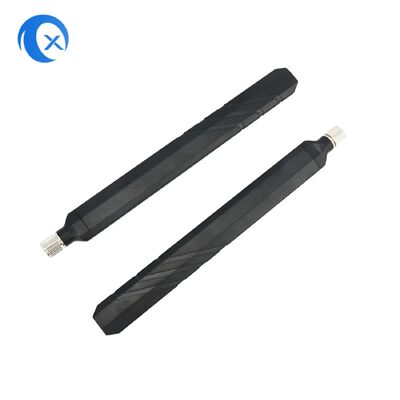

| Podkreślić: | DVB-T digital antenna with SMA plug,external HDTV antenna for digital video,SMA plug digital TV antenna |
||
| Frequency | 450-470MHz |
|---|---|
| V.S.W.R | <= 2 |
| Antenna Gain | 2 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | PCB+Spring |
|---|---|
| Material of Plastic | ABS |
| Cable Type | / |

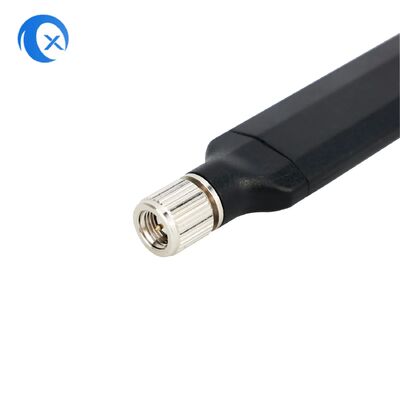

| Connector Type | SMA Plug |
| Operation Temperature | -20˚C ~ +60˚C |
|---|---|
| Storage Temperature | -40˚C ~ +80˚C |
Teng Xiang Electronics is an experienced manufacturer of RF products specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the wireless industry, including 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.
With expertise in telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions through in-house design, R&D, and manufacturing. Our team is committed to developing high-quality products while delivering exceptional customer service.
